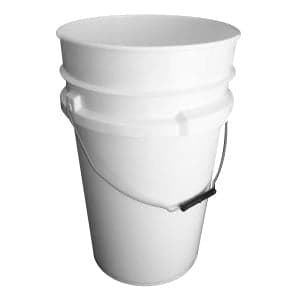

7 Gallon Bucket
V1021003
$18.50
C&M Topline · Made in the USA

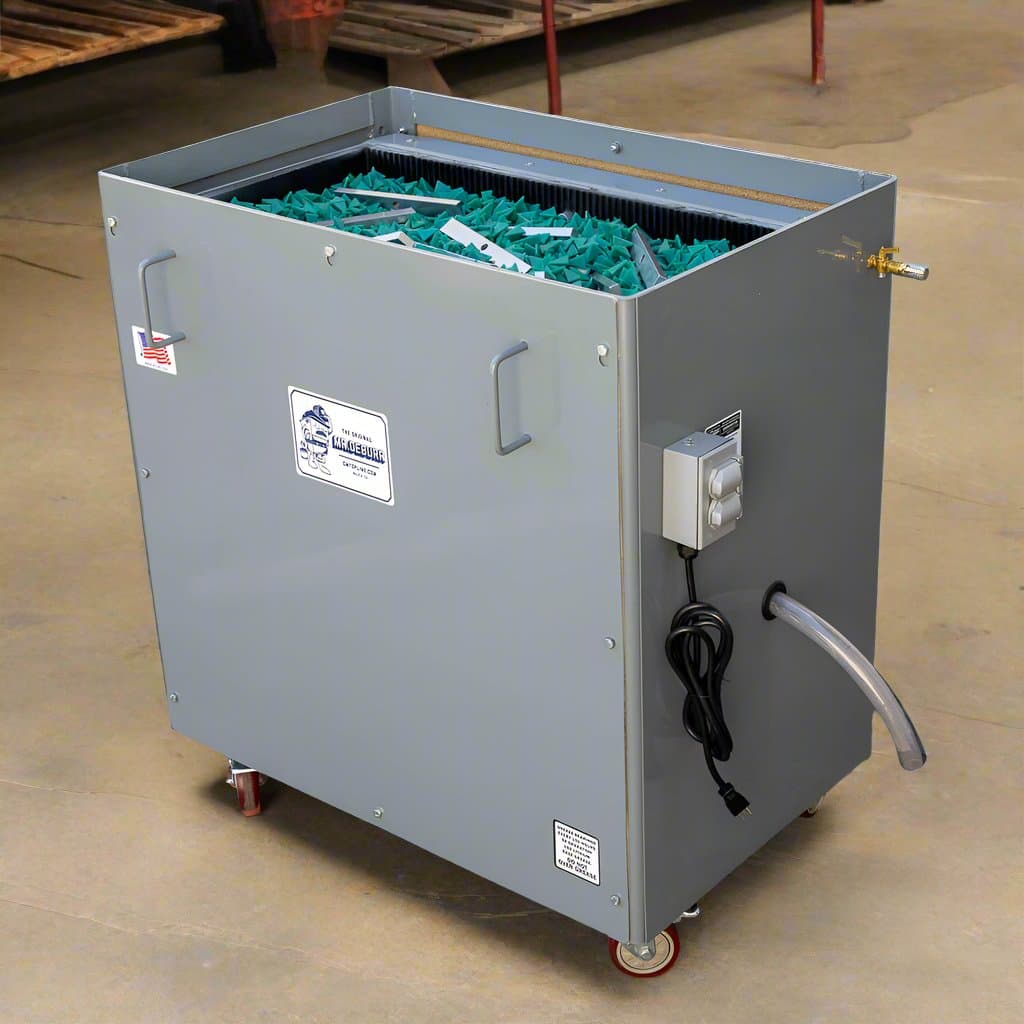

Mr. Deburr QDB3 (Portable, Quiet 3 Cubic Foot)
Vibratory tank finishing for deburring, cleaning and surface finishing.
Starting at $5,061.60
- Made in the USA
- Heavy-gauge steel construction
- Oven-cured polyurethane tank lining
- Fluid system and sound-reduction lid included
- Locking caster wheels
- Enclosed tank for quieter operation
- Removable front panel
Contact Richwood for availability, freight and application support.
Discuss your application →
Choose your electrical configuration
| Configuration | Part number | Price |
|---|---|---|
| US Voltage (110V | 60Hz) | QDB3D000 | $5,061.60 |
| US Voltage (208V | 60Hz) | QDB3D000 | $5,061.60 |
| International Voltage (220V | 50Hz) | QDB3I000 | $5,346.60 |
QDB3 specifications
- Country of manufacture
- United States
- Fluid System
- V102 Included, with 6 gallon pail
- Sound Reduction
- Vacuum Molded Hard Plastic lined with acoustic blocking material, included
- Max Length (in.)
- 37
- Max Width (in.)
- 20
- Max Height (in)
- 38
- Footprint (in.)
- 33 X 15
- Anchor Type
- Not required. Locking polyurethane caster wheels included for easy movement and facility reconfiguration as needed
- Total Volume (cu. ft.)
- 3
- Inside Tank Width (in.)
- 13.5
- Inside Tank Length (in.)
- 31
- Inside Tank Depth (in.)
- 13
- Max Part Length (in)
- 30
- Media Load (Plastic/Ceramic) (lbs)
- 100 lbs/150
- Tank Liner Specifications
- 1/2 to 5/8 inch, 80 durometer uni-royal polyurethane
- Minimum Media Size (mm)
- 5 (media smaller than 5mm porcelain spheres will fall through the drain holes) Contact us if you would like to run smaller media
- Approx. Part Load (lbs)
- 100
- Approx. Noise Level (dB)
- Less than 70 dB at 5 ft from machine
- Motor Horse Power, Standard
- 0.75HP, 1 Phase
Sales sheet & technical downloads
QDB3 parts & accessories
Match your machine model and electrical configuration when requesting replacement parts.

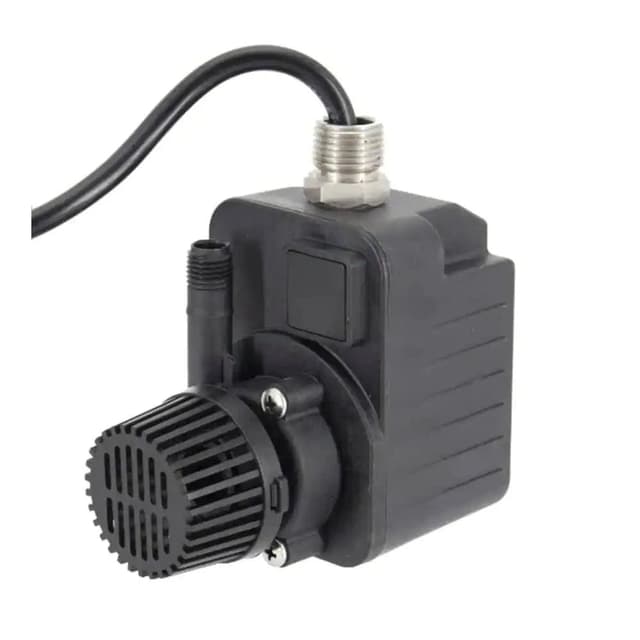

Beckett Pump for Fluid Systems
US Voltage (110V | 60Hz)
V1021001B
$99.50
Match motor voltage before ordering.
Ask about this part →

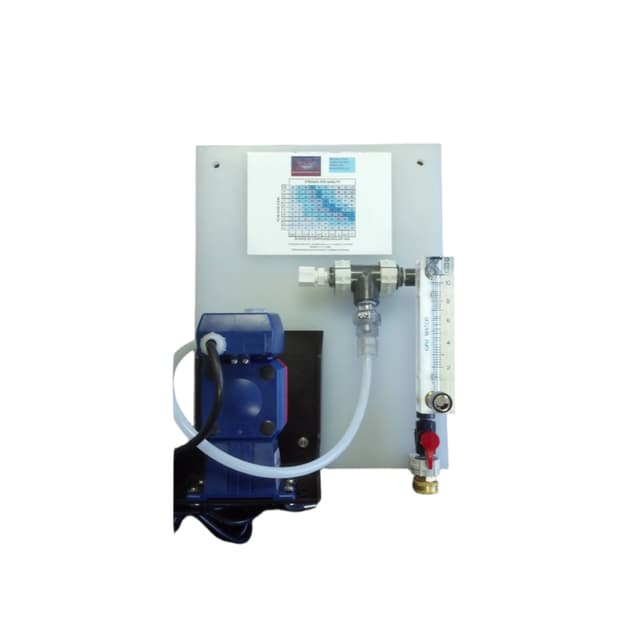

Compound Metering System
10 Gallons
VF-02015-10
$1,700.00
25 Gallons
VF-02015-25
$1,775.00
60 Gallons
VF-02015-60
$1,800.00
Select system capacity and confirm application requirements.
Ask about this part →

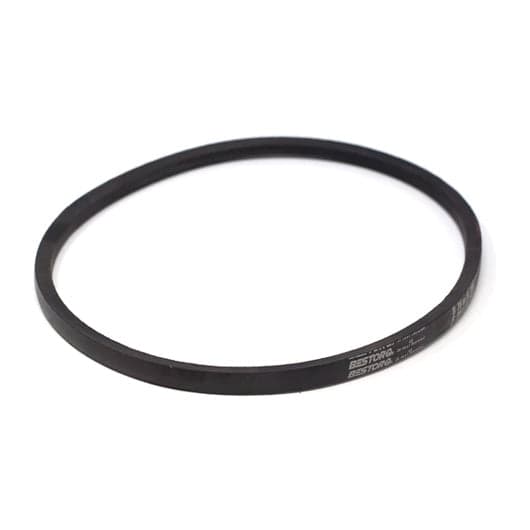

Mr. Deburr DB300 & QDB3 Drive Belt
DB300D020
$25.00

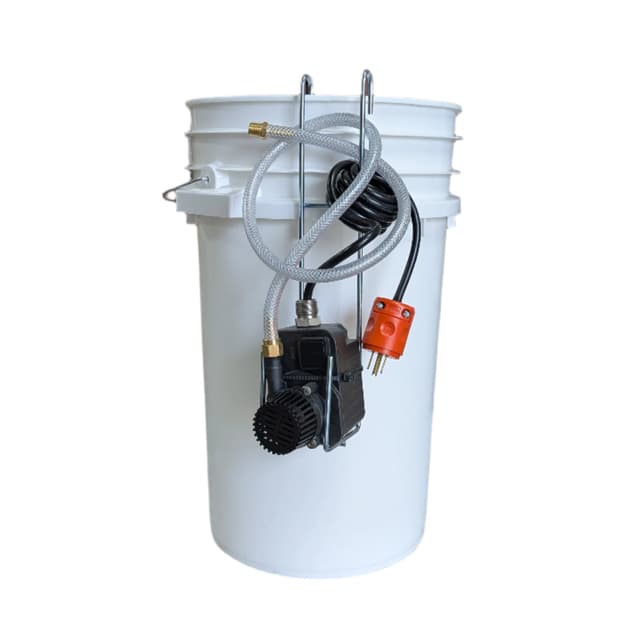

V-102 Fluid System (Beckett Pump)
US Voltage (110V | 60Hz) / TLV Bowl
V1021000
$149.00
US Voltage (110V | 60Hz) / Mr Deburr (valve not included)
V1021000
$149.00
Match motor voltage before ordering.
Ask about this part →

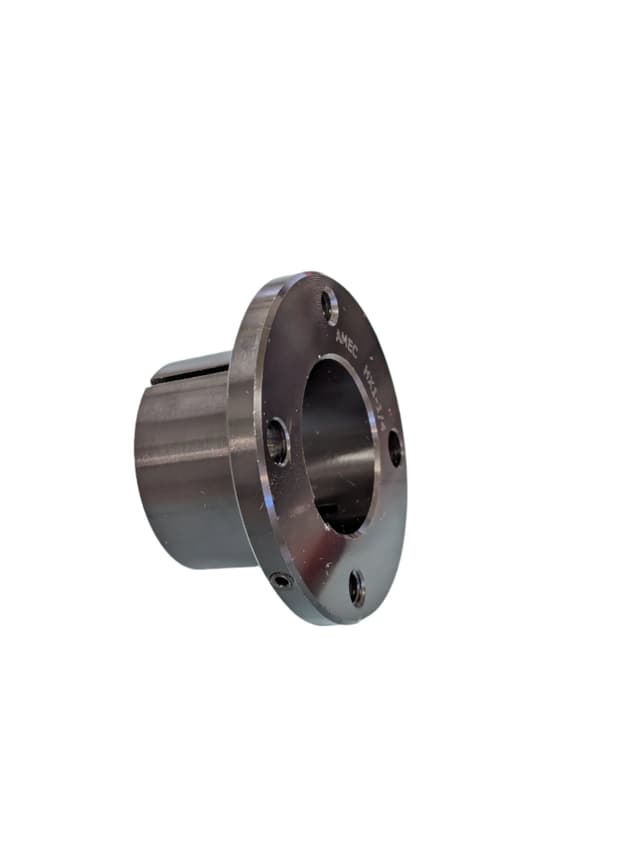

DB300 & QDB3 Pulley Bushing
DB300D907
$12.00

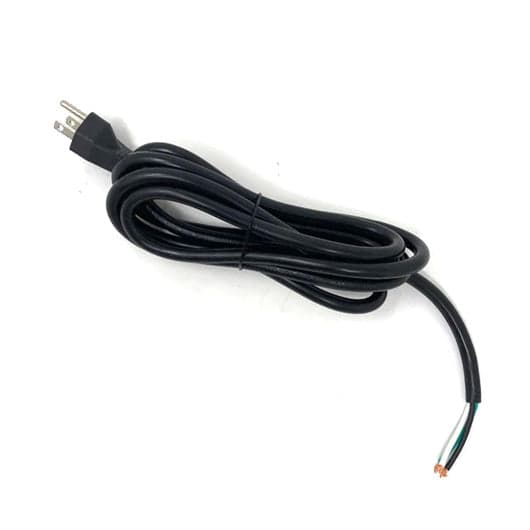

Replacement 110v Power Cord
TL2B2SD015
$15.00
110V configurations only.
Ask about this part →

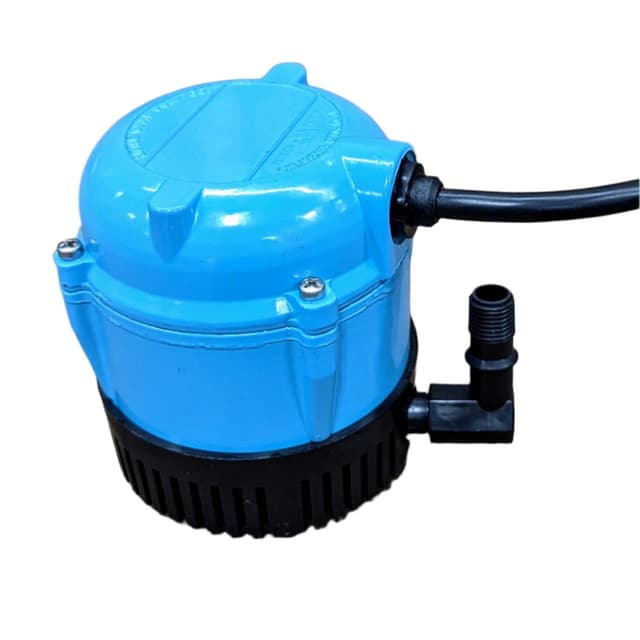

Little Giant Pump for Fluid Systems
US Voltage (110V | 60Hz)
V1021001
$175.00
International Voltage (220V | 50Hz)
V1022002
$175.00
Match motor voltage before ordering.
Ask about this part →

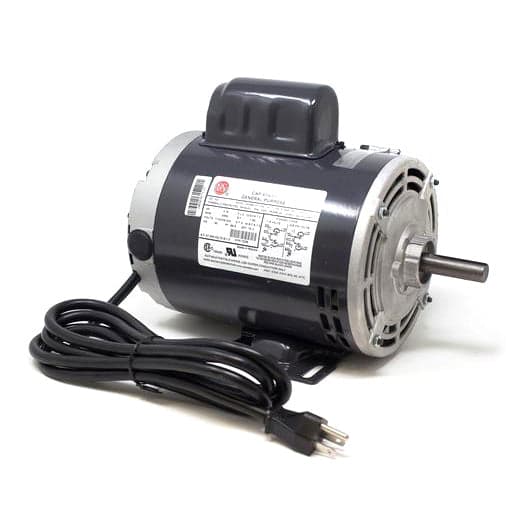

Mr. Deburr DB300 & QDB3 3/4 Horsepower, Single Phase Motor
110V
DB300D018
$410.00
208V
$410.00
Match motor voltage before ordering.
Ask about this part →

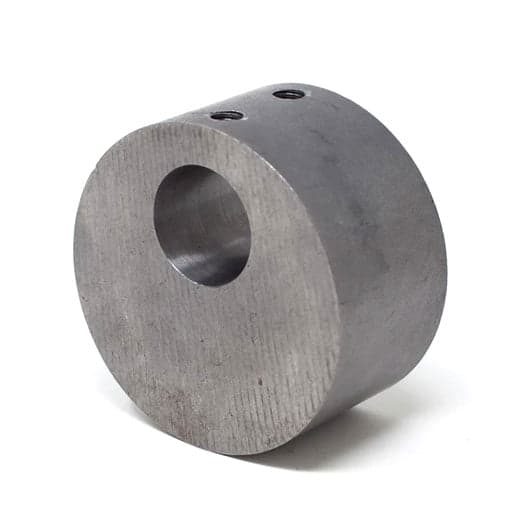

Mr. Deburr DB300 & QDB3 Shaft Weight
DB300D904
$58.00

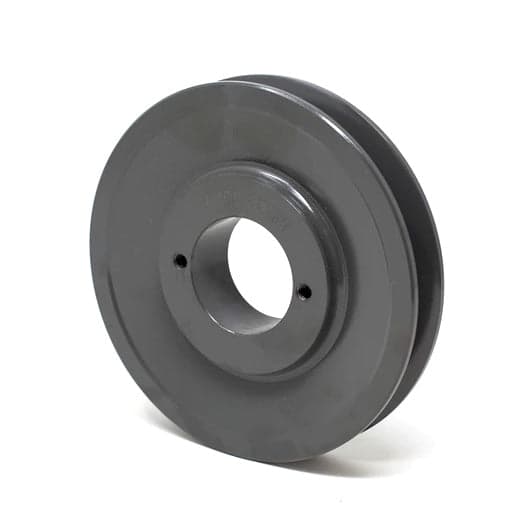

Mr. Deburr DB600 & QDB3 Shaft Pulley
DB600D034
$36.00

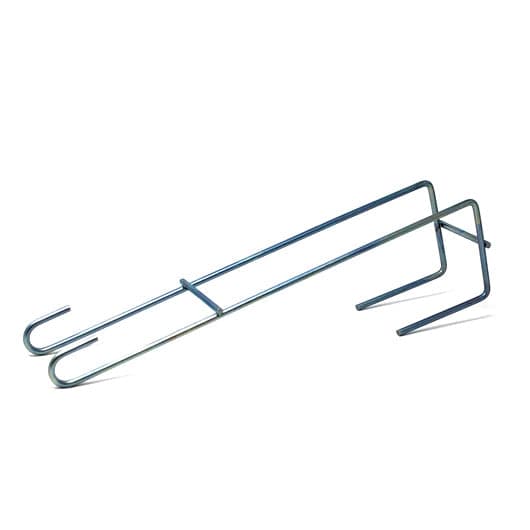

Pump Bracket
V1021002
$16.00
Match motor voltage before ordering.
Ask about this part →

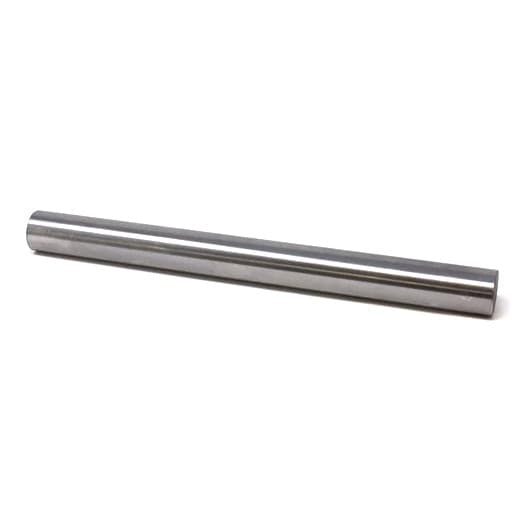

Mr. Deburr QDB3 Drive Shaft
$61.00
Ask about this part →

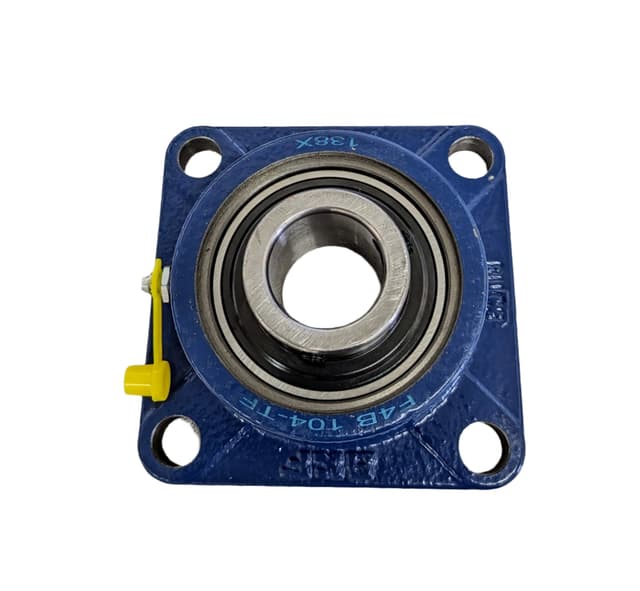

QDB3 Pillow Block Bearing (F4B 104-WF)
QDB3D901
$108.00

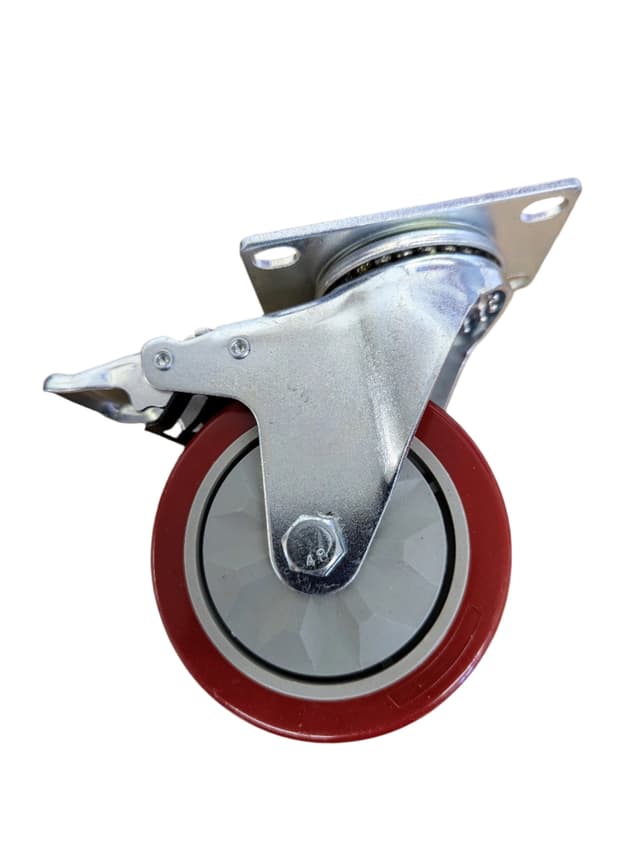

QDB3 Replacement Wheels
QDB3D201
$24.00

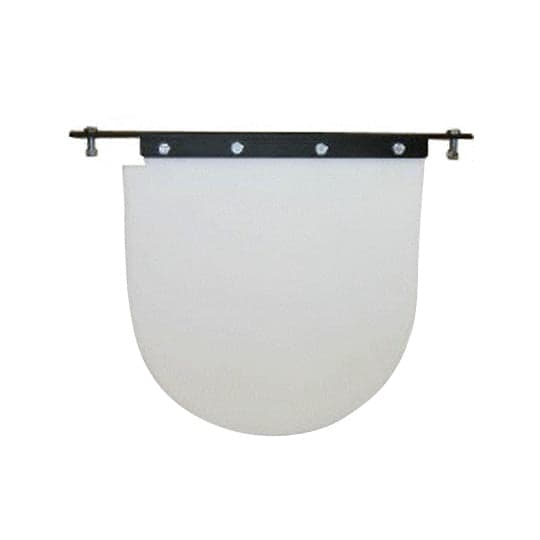

Tank Divider for Mr. Deburr DB300/QDB3 (3 Cubic Foot) Machines
DB300D600
$77.00

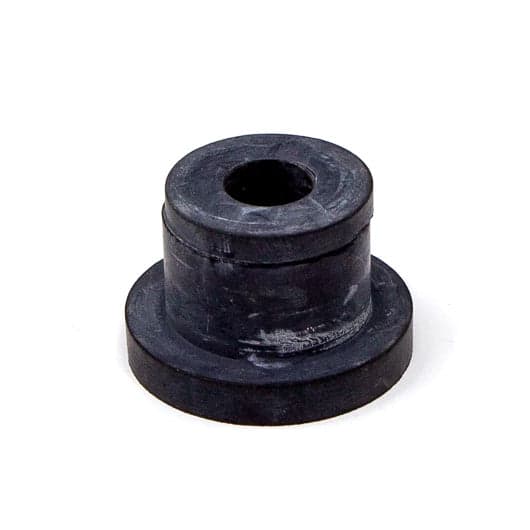

TLV 25, 50, 75, & QDB3 Spring Retainers
TLV25D016
$3.00

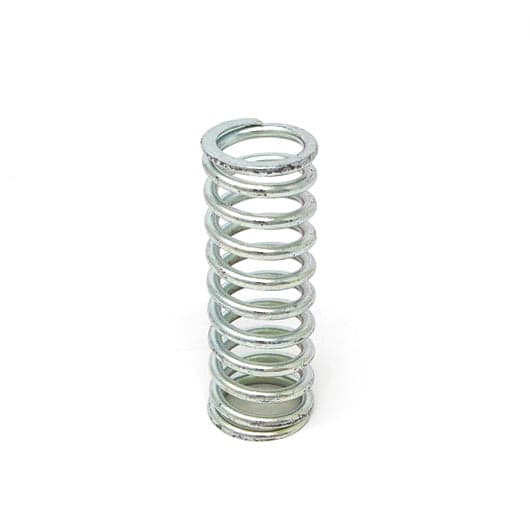

TLV 25 & QDB3 Spring
TLV25D015
$11.00

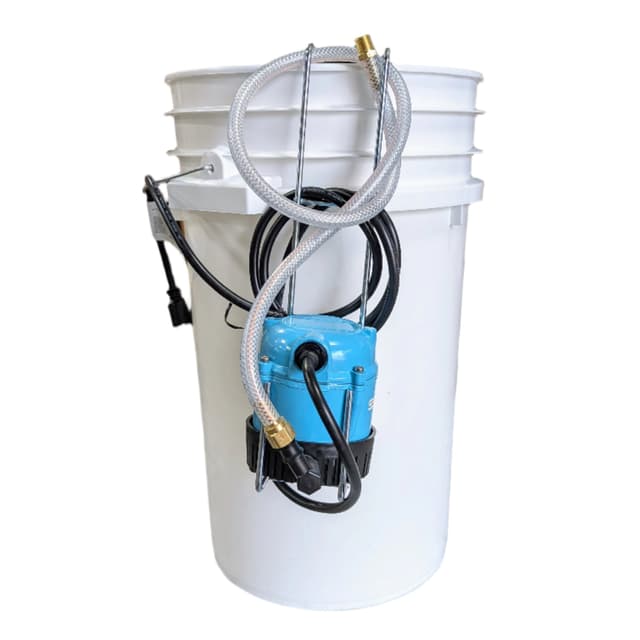

V-102 Fluid System (Little Giant Pump)
US Voltage (110V | 60Hz) / TLV Bowl
V1021000
$216.00
International Voltage (220V | 50Hz) / TLV Bowl
V1022001
$216.00
US Voltage (110V | 60Hz) / Mr Deburr (valve not included)
V1021000
$216.00
International Voltage (220V | 50Hz) / Mr Deburr (valve not included)
V1022001
$216.00
Match motor voltage before ordering.
Ask about this part →
