Cylindrical Wedge
From $3.47 / lb
Price varies by size. Stocked sizes below.
Cylindrical wedge ceramic media from the stocked line.
A cylinder with a full body wedge cut. The flat face rides broad surfaces while the round body works contours.
Cylindrical Wedge
Supplier reference sizes (inches)
These are supplier catalog options, not a stock or price guarantee. Use the separate stocked-size selections for priced options; contact Richwood for other sizes and formulations.
| Size (inches) | Formulations |
|---|---|
| 7/16 X 7/16 | NC, P, LC, NCB, M, SF, XF, UFX, DF, SC, 2, 3, 4 |
| 5/8 X 5/8 | NC, P, LC, NCB, M, SF, XF, UFX, DF, SC, 2, 3, 4 |
| 3/4 X 3/4 | NC, P, LC, NCB, M, SF, XF, UFX, DF, SC, 2, 3, 4 |
| 1 X 1 | NC, P, LC, NCB, M, SF, XF, UFX, DF, SC, 2, 3, 4 |
| 1-1/2 X 1-1/2 | NC, P, LC, NCB, M, SF, XF, UFX, DF, SC, 2, 3, 4 |
Vibra Finish ceramic media reference. Size strings follow the supplier table; confirm the required dimensions and grade on your quote.

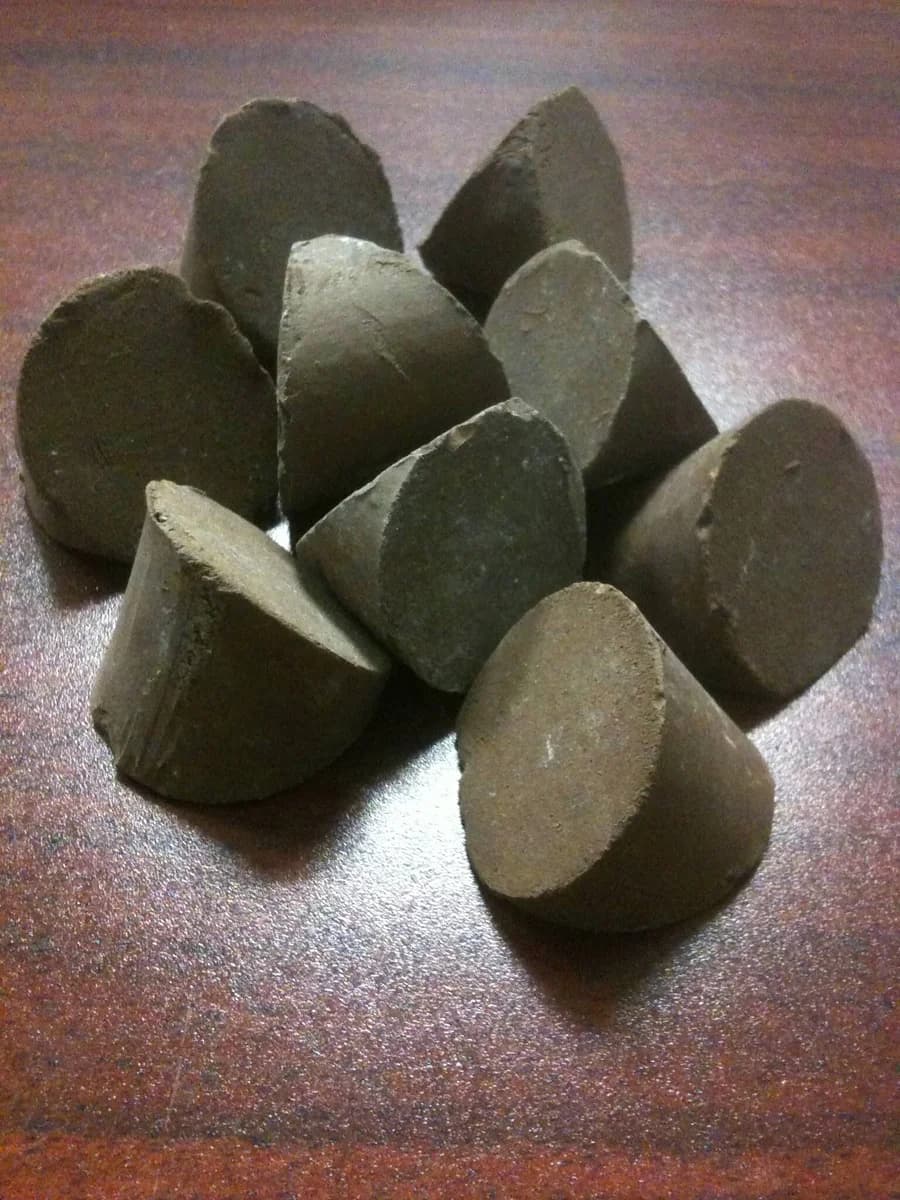

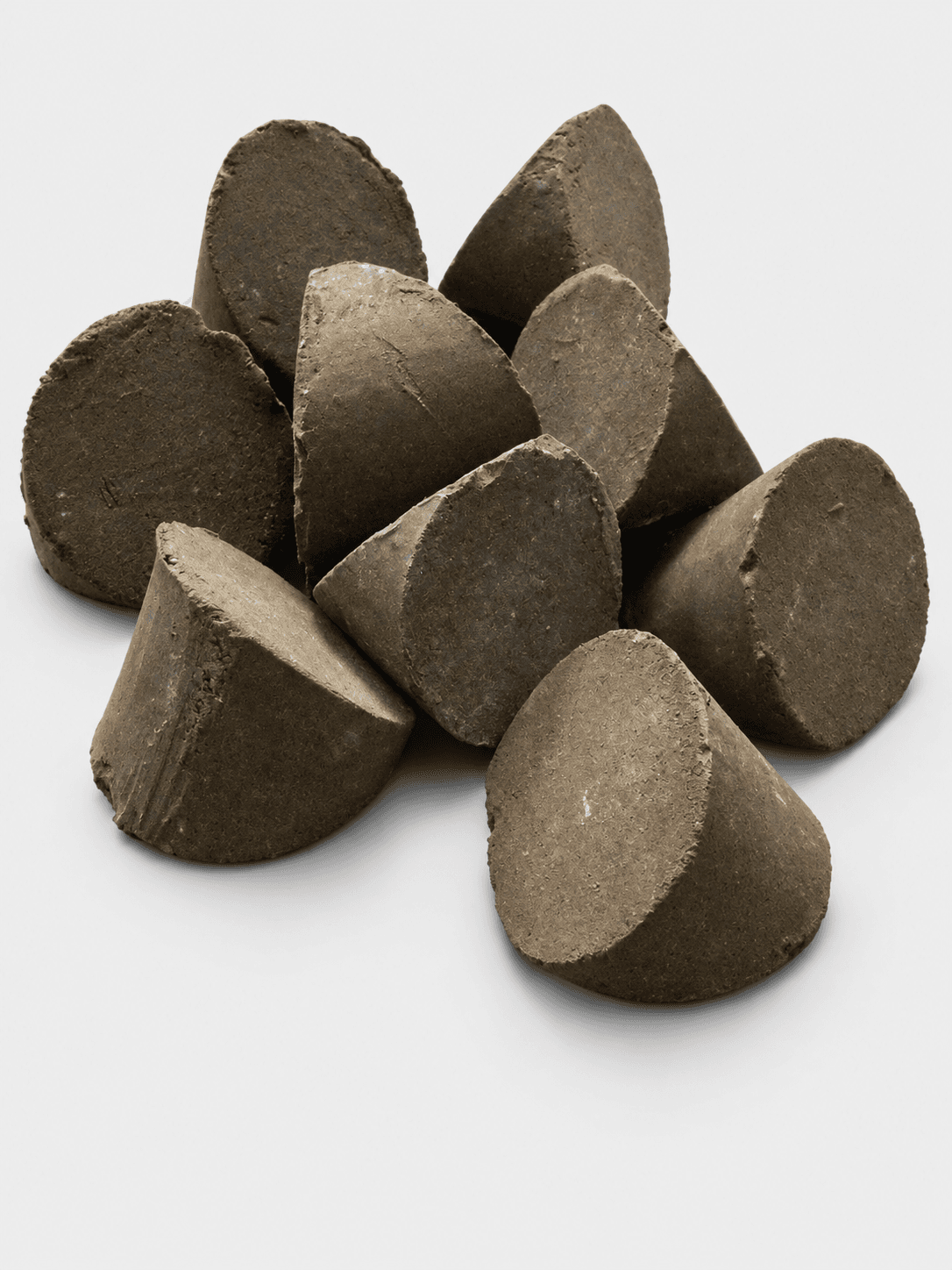

High-density ceramic options — separate formulation series
HD formulations 7 and 8 are listed separately from standard ceramic. Confirm the required grade; similar dimensions do not make the formulations interchangeable.
| Size (inches) | Formulations |
|---|---|
| 3/8 x 3/8 | 7, 8 |
| 5/8 x 5/8 | 7, 8 |
| 3/4 x 3/4 | 7, 8 |
| 1 x 1 | 7, 8 |
| 1-1/2 x 1-1/2 | 7, 8 |
Reference dimensions · 1 x 1 in
Catalog size below is listed separately. A/B/C on the supplier drawing identify its marked spans, not a universal width/length/depth order.
- Catalog dimension 1
- 1 in / 25.4 mm
- Catalog dimension 2
- 1 in / 25.4 mm
One catalog size, shown in inches and millimeters. Reference drawings are not to scale; see all size options below. What do A, B, and C mean? View the measuring guide.
Stocked sizes and pricing
Cylindrical wedge
| Size | 50+ lb | 250+ lb | 1,000+ lb | 2,000+ lb | 10,000+ lb | 20,000+ lb | 40,000+ lb |
|---|---|---|---|---|---|---|---|
| 7/16 x 7/16 | $4.02 / lb | $3.15 / lb | $2.98 / lb | $2.80 / lb | $2.66 / lb | $2.53 / lb | $2.40 / lb |
| 5/8 x 5/8 | $3.47 / lb | $2.59 / lb | $2.42 / lb | $2.24 / lb | $2.13 / lb | $2.02 / lb | $1.92 / lb |
| 3/4 x 3/4 | $3.47 / lb | $2.59 / lb | $2.42 / lb | $2.24 / lb | $2.13 / lb | $2.02 / lb | $1.92 / lb |
| 1 x 1 | $3.47 / lb | $2.59 / lb | $2.42 / lb | $2.24 / lb | $2.13 / lb | $2.02 / lb | $1.92 / lb |
| 1-1/2 x 1-1/2 | $3.47 / lb | $2.59 / lb | $2.42 / lb | $2.24 / lb | $2.13 / lb | $2.02 / lb | $1.92 / lb |
| 2 x 2 | $3.47 / lb | $2.59 / lb | $2.42 / lb | $2.24 / lb | $2.13 / lb | $2.02 / lb | $1.92 / lb |
Select a stocked size above to apply its quantity price. Each size is priced separately, in 50 lb increments. Formulation, packaging and freight are confirmed on your quote.
Attributes
- Category
- Ceramic Media
- Archived variants
- 0
- Sizes
- Six stocked sizes, 7/16 to 2 in
- Shape use
- Flat face for broad surfaces, round body for contours
- Current details
- Confirmed with Kevin on the quote
Variants
Add the exact row when you know it. If not, add the full product above and include your current code or dimensions in the request.
No variant rows were listed in the recovered catalog. Add the product and Kevin will confirm the current forms and specifications.
Best for
- Broad surfaces
- Contours
